Using Graduated ND Filters

05/05/2020

Selecting and Using NiSi Graduated ND Filters

Introduction

One of the biggest challenges in photography is managing the light in your scene. It is for this reason that many landscape photographers love to be out shooting during the golden hours or blue hour when the light is beautiful and the contrast is manageable. Contrast is tough to manage on bright days and in certain scenes, but there are a few ways to work around this. In this article we are going to look at the usefulness of using neutral density gradient filters (aka ND grads). These filters have been around for a long time, most landscape photographers will have a set of them in their camera bag.

Filters or Photoshop?

In recent years, there has been an ongoing debate around whether it is better to use filters or to bracket the images and blend them in Photoshop afterwards or even use HDR to capture all the different tonality and light in a scene. In many cases this is a personal preference, and I switch between the two depending on the scene or the vision I have of the image I want to make.
If I am shooting during golden hour I will most often use an ND grad filter. If I am doing a starscape, I will take two images and blend them, one for the sky and one for the foreground. The reason is this. At golden hour, I can expose for the ambient light and use a filter to keep the detail in the sky. If I want a starscape (not a star trail) I need to push my ISO up really high and if there is something in the foreground of the scene that is a little too bright, it will overexpose. My first shot will be an image that will expose the the scene properly. For my second shot, I will expose the sky to capture a starscape shot. Afterwards, I will blend them in Photoshop, which really works well.
In some cases, there is no substitute for an ND grad. If you want the waves in a seascape scene to become silky smooth or a river to look soft and white, then you will need to use ND grads. This effect cannot be made in Photoshop (not yet anyway). The best part about using ND grads is the surprise you get when you see the image on the screen. You will be amazed at the effect of capturing the blurred movement of different elements in your image.

Tips for selecting and using graduated neutral density filters

Controlling and balancing the exposure throughout an entire image can be difficult when you have brighter or darker elements in different parts of a scene. More often than not with landscape photography the sky will be much brighter than the foreground – up to 6 or 7 stops difference depending on what time of the day you are shooting. When shooting things like a city scene during the night you will tend to find the reverse happens – the foreground will be much brighter than the sky with light trails and city lights tending to become overexposed with longer exposures. It is possible with post processing techniques in software packages like Adobe Photoshop to capture multiple images (bracketed exposures) for different parts of the scene and to blend them together, or to use software adjustments like the “gradient filter” in Adobe Lightroom or Adobe Camera RAW to change the exposure and colours in certain parts of an image like the sky.

The other option would be to use graduated neutral density filters to control the exposure in the brightest part of the scene, therefore capturing images with a balanced sky and foreground, and contrast throughout the entire image. The benefits of using filters include being able to expose the entire scene correctly in a single shot, or to get different parts of the scene closer together in exposure when choosing to blend multiple images together in post processing, reducing time required when editing images.

What is a graduated neutral density filter?


I use the NiSi complete range of Neutral Density Graduated Filters, for more information please see here

gnds


Graduated neutral density filters are typically rectangular pieces of glass (although they are also available as circular filters in the NiSi product range as well) with a gradient transition from dark to light in varying strengths. The gradient can run from darkest at the top to lighter in the middle for filters such as a soft or medium grad, or from darker in the middle to lighter at the top for reverse graduated filters. The strength or density of the gradient is represented in stops of light in the darkest part of the filter, with each stop of light being a 0.3 decimal value. So for a 3 stop soft grad, you will see the value of 0.9 printed on the filter. For a 4 stop medium grad it will be represented as a 1.2 and so on.

Graduated neutral density filters are called “neutral” because they should add no colour cast or any noticeable change in the white balance in the area of impact of an image. The gradient is designed to darken either the sky or foreground depending on how it is aligned, but colour reproduction should not be impacted when using high quality optical glass to manufacture ND filters.

The focal length and physical build size of any individual lens will determine what system or size of graduated neutral density filters and filter holder will be required. NiSi offer systems in 75mm for smaller compact cameras, 100mm for standard focal lengths as wide as 16mm (and sometimes wider depending on the specific lens) and lens screw thread sizes to 82mm like the Canon 16-35mm f/2.8L, or 150mm or 180mm systems for lenses wider than 16mm and those that tend to have a “bulbous” front glass element such as the very popular 14-24mm Nikon f/2.8.

Selecting the correct density of graduated ND filter to use

Choosing the correct graduated neutral density filter will depend on a couple of major things – the amount of difference in light (measured in stops) between different parts of the scene, and environmental factors like whether there is a flat, uninterrupted horizon line or elements like mountains, trees or buildings above the horizon. Where the sun or other bright parts of the scene are positioned will impact on the selection of ND filter as well.

To make a decision about what density of graduated ND to use (eg. 3 stop or 4 stop) a meter reading of both the sky and foreground will need to be done. To do so you will need to –

1. Set your camera up on a tripod and ensure your camera is in Manual mode. To take a meter reading of the foreground in your scene get your shutter speed, ISO and aperture correct, and ensure the foreground it is being exposed at 0 EV. This is best done in Evaluative or Centre Weighted metering modes.

2. By either moving your metering area using the camera controls, or tilting your camera upwards towards the sky and not moving your metering point (or in whichever direction the brighter parts of the scene are), take note of the meter reading and the variation of stops of light within this part of the scene. Do not change the camera settings that were set to meter correctly for the foreground. The difference in exposure level will be measured in variations of +/- 1EV (or even +/- 1/3EV) on most cameras.

3. The difference in EV levels (or stops of light) will be the requirement when choosing what strength of grad filter to use. The aim is to get the foreground and sky within 1 stop of light difference of each other. So if the sky is 3 stops brighter than the foreground, either a 2 stop or 3 stop graduated ND will be required to help balance the exposure of the brighter part of the scene.

ND Optical Density F-stop Reduction Transmittance %

ND4 0.6 2 stop 25%

ND8 0.9 3 stop 12.5%

ND16 1.2 4 stop 6.25%

ND32 1.5 5 stop 3.12%



soft grad filter resized

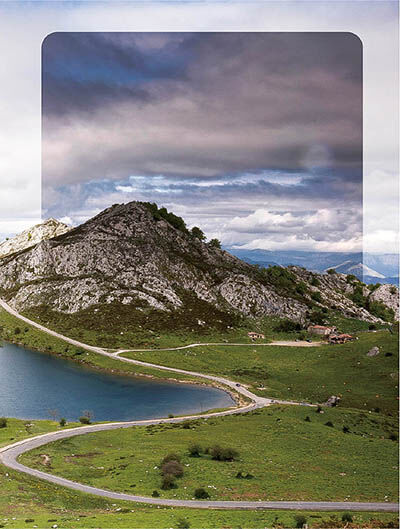

When to use a soft graduated neutral density filter

A soft graduated neutral density filter offers a smooth transition gradually changing from dark at the top of the filter, to light in the middle of the filter and clear in the bottom half. The darker part of the transition gently “fades” into the lightest part with no noticeable dark lines in the horizon area being introduced from the filter in an image that has been exposed correctly. These are best used when there is not such a noticeable difference between the dark and light areas of the scene, and when there are things such as buildings, mountains, bridges or any similar elements above the noticeable horizon line. The gradual transition should allow for these elements to still be exposed correctly if the filter lines up with them.














med grad filter resized

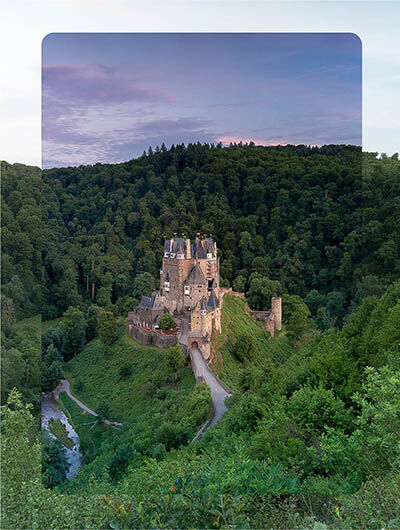

When to use a medium graduated neutral density filter

Medium graduated neutral density filters have a much more noticeable transition from darkest at the top, to lightest in the middle of the filter and clear in the bottom half. These are best used when there is a noticeable brightness difference between the elements of a scene that you need to control such as when the sun is higher in the sky. Medium grads can be used when there are smaller elements above the horizon such as building and mountains. The bigger these elements are, the darker they will become when lined up with the top parts of the filter, potentially introducing under exposed elements in an image. A medium grad will produce more contrasty, dramatic clouds and sky when compared to a soft grad due to the difference in transition.













hard grad filter resized

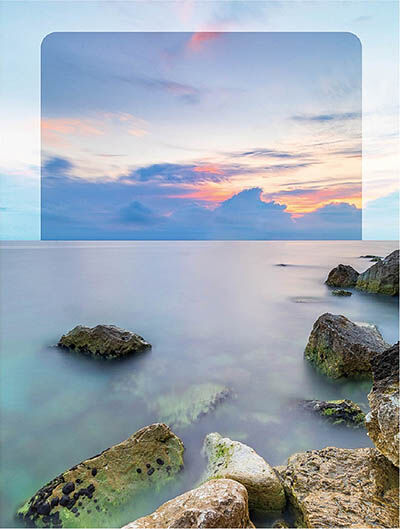

When to use a hard graduated neutral density filter

Hard graduated neutral density filters have a very defined horizon line and are best used when there is nothing protruding above the horizon in a scene such as shooting a seascape with a straight looking out to sea. If there is anything above the horizon, these elements are very likely to be impacted on when capturing an image. Due to the defined darker horizon on the filter, it is very important to make sure this lines up correctly with the horizon in the scene otherwise you will see a noticeable unwanted darker line in parts of your image.
















reverse grad filterResized

When to use a reverse graduated neutral density filter

Reverse graduated neutral density filters are darker in the middle, with the transition fading away to be lighter in the top half of the filter. Just as with a hard grad, there is a noticeable darker line in the middle of the filter, so care needs to be shown when aligning them with your scene. Reverse grads are designed to be used when the sun is lower and more intense closer to the horizon just on sunset or sunrise.
